Professional LCD Monitors for Commercial Applications
High-resolution displays with rugged construction, wide voltage support, and advanced connectivity for commercial vehicles, transportation, and industrial environments.
Professional Monitor Features
Engineered for demanding commercial and industrial environments with advanced features and reliable performance.
High Resolution Display
Crystal clear Full HD 1920×1080 resolution with high contrast ratio and wide viewing angles for optimal visibility in all lighting conditions.
Wide Voltage Support
DC9V-36V input range with built-in protection circuits for stable operation in various vehicle electrical systems and industrial applications.
Rugged Construction
All-metal housing with shock-proof design and excellent heat dissipation for reliable operation in harsh environmental conditions.
Wide Temperature Range
Operating temperature from -20°C to 60°C ensures reliable performance in extreme weather conditions and demanding environments.
Multiple Interfaces
USB, HDMI, RJ45, and TF card slots provide flexible connectivity options for various input sources and multimedia applications.
Smart Android System
Android 11 operating system with quad-core processor for multimedia playback, smart applications, and advanced functionality.
Specifications

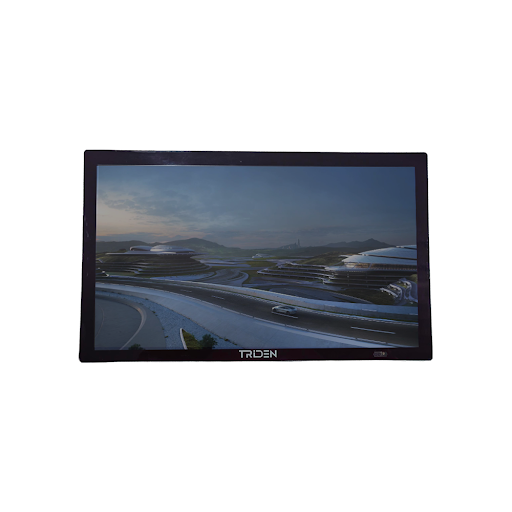

Complete technical specifications for the DT-AW3566 15.6" Display Monitor with detailed performance parameters and connectivity options.
| Specification | Details |
|---|---|
| Display Screen | 15.6" LED LCD 1920×1080 pixels 16:9 ratio 344.16×193.59mm area |
| Display Performance | 3000:1 contrast 250 cd/m² luminance 89° viewing angle Wide angle view |
| System Configuration | Android 11.0 4-core ARM Cortex-A55 @1.8GHz Mali-G52-2EE GPU 2GB DDR3 RAM 16GB EMMC storage |
| Power & Environment | DC 9V-36V 14W-20W consumption -20°C to 60°C Multilingual menu |
| Multimedia Support | 4K H.264/H.265/VP9 AVI/MP4/TS/MOV/MKV MP3/WMA/AAC audio JPG/BMP/JPEG/GIF |
| Interface Configuration | 2× USB 2.0 HOST 1× HDMI output 1× RJ45 100M network TF card (up to 32GB) Audio output port 2×8R 3W speakers |
| Physical Dimensions | 410×245×78.49mm body 460×125×320mm inner box 530×485×345mm outer box 14kg/carton (4 units) |
| Included Accessories | Android remote control User manual Mounting screws set |
Accessories
Complete your setup with professional accessories designed for optimal performance and installation.
Android Remote Control
Wireless Android remote control for convenient operation and navigation
User Manual
Comprehensive installation and operation manual with technical specifications
Mounting Screws Set
Complete mounting hardware kit for secure professional installation
Packaging
Professional packaging with inner and outer boxes for safe shipping
